February 8, 2013

WD Sharespace - Restoring Crashed Drive

Followed the directions on this website:
http://wdc.custhelp.com/app/answers/detail/a_id/2749/session/L3RpbWUvMTM2MDM3MjczMi9zaWQvTmIxKkFuaWw%3D

Could not have been easier. Didn't even need a screwdriver. Now, three drive lights are flashing green. One drive light (Drive 2) is solid green.

After a while, all four drive lights started flashing green. I believe it's restoring the data automagically for me.

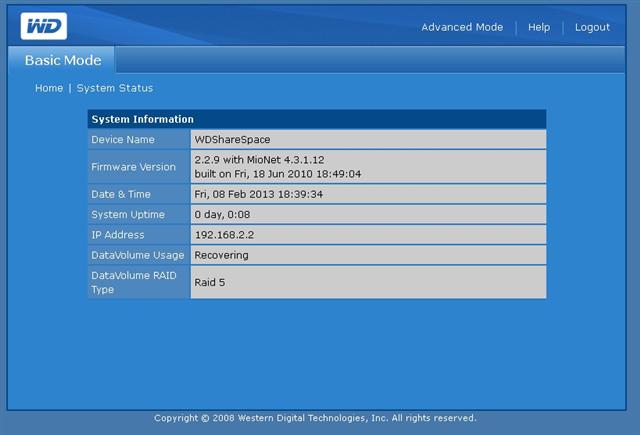

Navigation: Basic Mode - Storage - System Status

So, it appears that the system is attempting to recover the data.

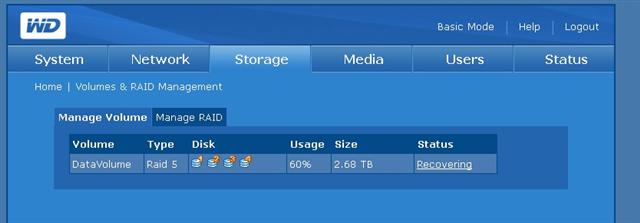

Navigation: Advanced Mode - Storage - Volumes and RAID Management

This also indicates it's recovering data...

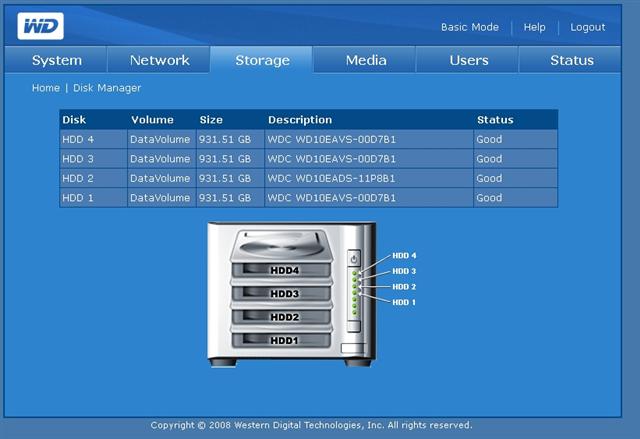

Navigation: Advanced Mode - Storage - Disk Manager

So, it says all four drives are good...

It appears to have started the restore at 6:30 p.m. MST.

I think now, we just wait and see. Should for about 5 hours, apparently?

Here's my log file. If you skip down to the bottom, you'll see it says it's recovering. Fingers crossed.

Navigation: Advanced Mode - Status - System Logs

02/08 18:09:45 WDShareSpace syslog.info syslogd started: BusyBox v1.1.1
02/08 18:09:51 WDShareSpace daemon.info wixEvent[935]: HDD Status - HDD 4 is found.
02/08 18:09:56 WDShareSpace daemon.info wixEvent[935]: HDD Status - HDD 3 is found.
02/08 18:10:01 WDShareSpace daemon.info wixEvent[935]: HDD Status - HDD 2 is found.
02/08 18:10:01 WDShareSpace syslog.info miocrawler: ++++++++ database exists: ret = 0
02/08 18:10:01 WDShareSpace syslog.info miocrawler: +++++++++++++++ START OF ./miocrawler at 2013:02:08 - 18:10:01 [Version 01.09.02.2] ++++++++++++++
02/08 18:10:01 WDShareSpace syslog.info miocrawler: mc_db_init ...
02/08 18:10:08 WDShareSpace syslog.info miocrawler: === mc_db_init ...Done.
02/08 18:10:08 WDShareSpace syslog.info miocrawler: mcUtilsInit() Creating free queue pool
02/08 18:10:09 WDShareSpace daemon.info wixEvent[935]: HDD Status - HDD 1 is found.
02/08 18:10:09 WDShareSpace syslog.info miocrawler: === Walking directory done.
02/08 18:10:09 WDShareSpace syslog.info miocrawler: === inotify init done.
02/08 18:10:09 WDShareSpace syslog.info miocrawler: === mcUtilsInit() Done.
02/08 18:10:09 WDShareSpace syslog.info miocrawler: === mc_trans_updater_init() ...Done.
02/08 18:10:09 WDShareSpace syslog.info miocrawler: ======= start cleaning up DB
02/08 18:10:09 WDShareSpace syslog.info miocrawler: mc_trans_updater_init() ...
02/08 18:10:10 WDShareSpace daemon.warn wixEvent[935]: Network Link - NIC 1 link is down.
02/08 18:10:17 WDShareSpace daemon.info wixEvent[935]: Network IP Address - NIC 1 got IP address 192.168.2.2 from DHCP server.
02/08 18:10:17 WDShareSpace daemon.info wixEvent[935]: Network Link - NIC 1 link is up 100 Mbps full duplex.
02/08 18:10:17 WDShareSpace daemon.info wixEvent[935]: System Startup - System startup.
02/08 18:10:26 WDShareSpace daemon.warn wixEvent[935]: System Shutdown - System will be shutdown.
02/08 18:10:27 WDShareSpace daemon.info afpd[889]: shutting down on signal 15
02/08 18:10:30 WDShareSpace syslog.info System log daemon exiting.
02/08 18:31:24 WDShareSpace syslog.info syslogd started: BusyBox v1.1.1
02/08 18:31:29 WDShareSpace daemon.info wixEvent[1024]: HDD Status - HDD 4 is found.
02/08 18:31:33 WDShareSpace daemon.info wixEvent[1024]: HDD Status - HDD 3 is found.
02/08 18:31:38 WDShareSpace daemon.info wixEvent[1024]: HDD Status - HDD 2 is found.
02/08 18:31:46 WDShareSpace syslog.info miocrawler: +++++++++++++++ START OF ./miocrawler at 2013:02:08 - 18:31:46 [Version 01.09.02.2] ++++++++++++++
02/08 18:31:46 WDShareSpace syslog.info miocrawler: mc_db_init ...
02/08 18:31:47 WDShareSpace syslog.info miocrawler: ++++++++ database exists: ret = 0
02/08 18:31:48 WDShareSpace daemon.info wixEvent[1024]: HDD Status - HDD 1 is found.
02/08 18:31:51 WDShareSpace daemon.warn wixEvent[1024]: Network Link - NIC 1 link is down.
02/08 18:31:52 WDShareSpace syslog.info miocrawler: === Walking directory done.
02/08 18:31:52 WDShareSpace syslog.info miocrawler: === inotify init done.
02/08 18:31:52 WDShareSpace syslog.info miocrawler: === mcUtilsInit() Done.
02/08 18:31:52 WDShareSpace syslog.info miocrawler: === mc_db_init ...Done.
02/08 18:31:52 WDShareSpace syslog.info miocrawler: === mc_trans_updater_init() ...Done.
02/08 18:31:52 WDShareSpace syslog.info miocrawler: mcUtilsInit() Creating free queue pool
02/08 18:31:52 WDShareSpace syslog.info miocrawler: mc_trans_updater_init() ...
02/08 18:31:55 WDShareSpace syslog.info miocrawler: ======= start cleaning up DB
02/08 18:31:59 WDShareSpace daemon.info wixEvent[1024]: Network IP Address - NIC 1 got IP address 192.168.2.2 from DHCP server.
02/08 18:31:59 WDShareSpace daemon.info wixEvent[1024]: Network Link - NIC 1 link is up 100 Mbps full duplex.
02/08 18:31:59 WDShareSpace daemon.info wixEvent[1024]: System Startup - System startup.
02/08 18:32:30 WDShareSpace daemon.warn wixEvent[1024]: Volume Status - Volume 'DataVolume' is resyncing, 0% had completed.


Update:

I checked on the progress at 6:14 a.m.

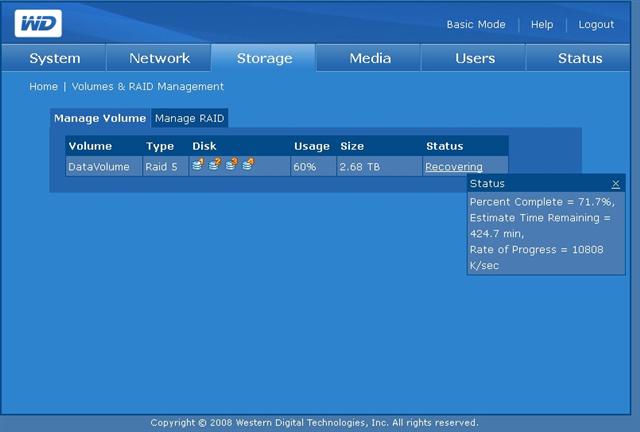

Navigation: Advanced Mode - Storage - Volumes and RAID Management

I realized that you can click on the link that says "Recovering" and get fairly detailed information on the recovery status. My latest calculation is that it will finish recovering in about 8 hours, so at about 2:30 p.m. Fingers crossed.

It looks like it's doing something. Every time it recovers another 20% of the data, it writes a row to the log file.

Navigation: Advanced Mode - Status - System Logs


02/08 18:32:30 WDShareSpace daemon.warn wixEvent[1024]: Volume Status - Volume 'DataVolume' is resyncing, 0% had completed.
02/08 21:51:59 WDShareSpace daemon.warn wixEvent[1024]: Volume Status - Volume 'DataVolume' is resyncing, 20% had completed.
02/09 01:10:56 WDShareSpace daemon.warn wixEvent[1024]: Volume Status - Volume 'DataVolume' is resyncing, 40% had completed.
02/09 04:30:37 WDShareSpace daemon.warn wixEvent[1024]: Volume Status - Volume 'DataVolume' is resyncing, 60% had completed.

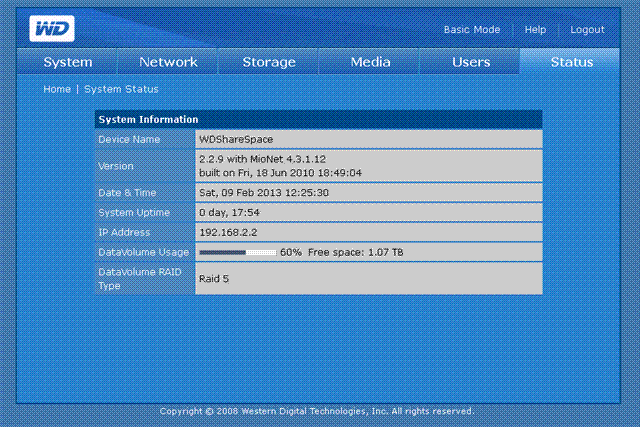

OK. Checking back at 12:30 p.m. MST:

Navigation: Advanced Mode - Storage - Disk Manager

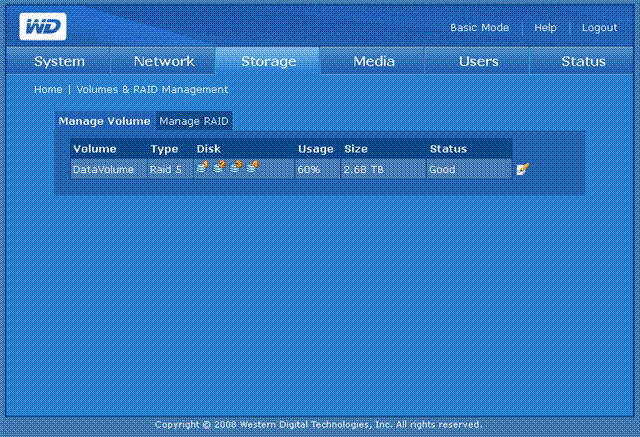

Navigation: Advanced Mode - Storage - Volumes and RAID Management


Navigation: Advanced Mode - Status - System Logs

02/09 08:11:33 WDShareSpace daemon.warn wixEvent[1024]: Volume Status - Volume 'DataVolume' is resyncing, 81% had completed.
02/09 11:52:53 WDShareSpace daemon.warn wixEvent[1024]: Volume Status - Volume 'DataVolume' works normally. (Resync 100% completed.)

I seems to think that it recovered everything at 8 minutes before noon. Now the question is...do I still have my data?

Oh h3ll yeah! We're rock-solid! Well done, WD. Well done!!! :) Woohoo!!!
